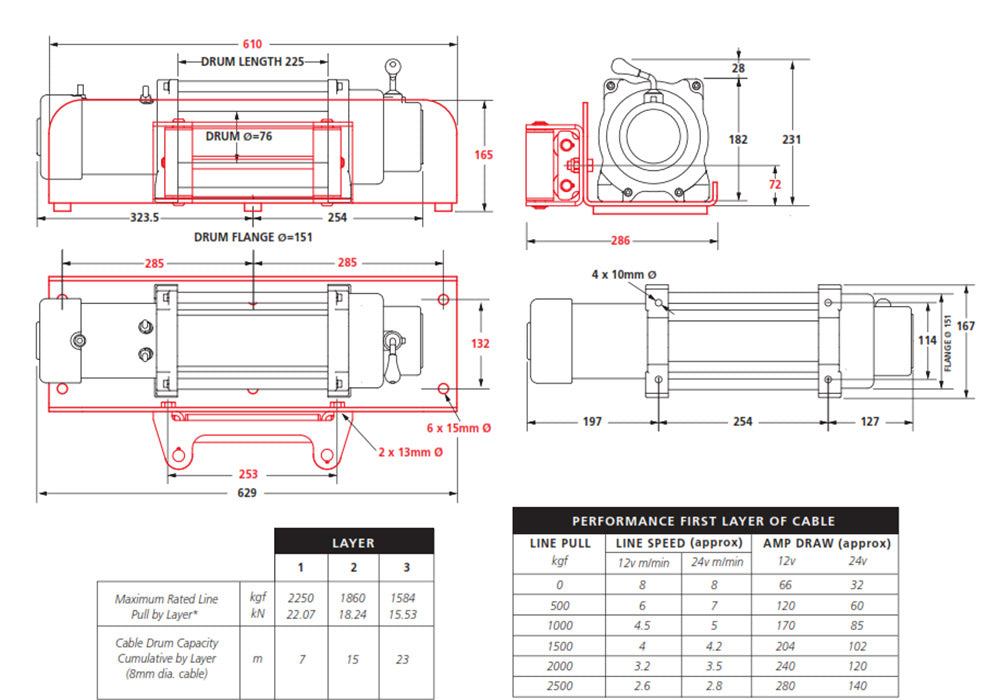

24V WINCH MODEL BH2250 EN14492-1 WITHOUT SOLENOIDS
2250 KG RECOVERY WINCH 24V NO ROPE SUPPLIED [ Rope size needed is 8mm x 23m long ]
12v or 24v DC Electric Recovery Winch
2250kg Line Pull

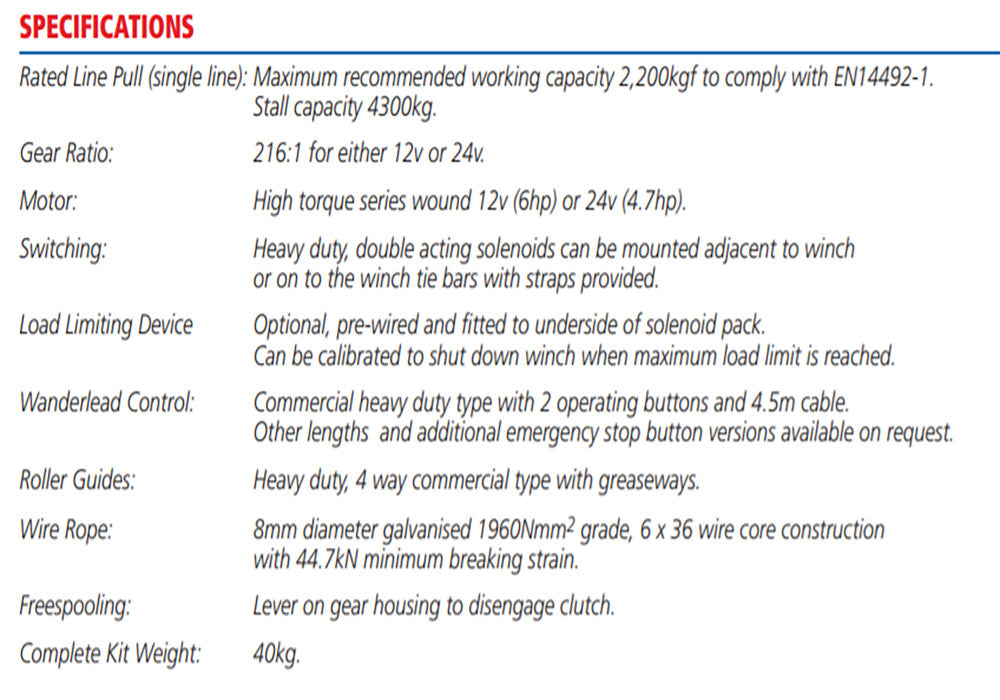

SPECIFICATIONS
Rated Line Pull (single line): Maximum recommended working capacity 2,200kgf to comply with EN14492-1.
Stall capacity 4300kg., Gear Ratio: 216:1 for either 12v or 24v., Motor: High torque series wound 24v (4.7hp).
Switching: Heavy duty, double acting solenoids can be mounted adjacent to winch [ NOT SUPPLIED ] or on to the winch tie bars with straps provided.
Load Limiting Device Optional, pre-wired and fitted to underside of solenoid pack. [ NOT SUPPLIED]
Can be calibrated to shut down winch when maximum load limit is reached.
Wanderlead Control: Commercial heavy duty type with 2 operating buttons and 4.5m cable.[ NOT SUPPLIED ]
Other lengths and additional emergency stop button versions available on request.
Roller Guides: Heavy duty, 4 way commercial type with grease ways. [ NOT SUPPLIED ]
Wire Rope: 8mm diameter galvanised 1960Nmm2 grade, 6 x 36 wire core construction [ NOT SUPPLIED ] with 44.7kN minimum breaking strain.
Free spooling: Lever on gear housing to disengage clutch.
Complete Kit Weight: 40kg
FEATURES INCLUDE
• 2250kg line pull
(22.07kN)
• Powerful series wound, high torque motor options
12v or 24v
• Optional electronic load limiting device
Pre wired to solenoid for safer winch operation
• 3 stage planetary gearing
Providing high mechanical efficiency
• Automatic braking action in drum
• Free spool clutch lever
Easy to operate lever for disengaging drum
• Power in / power out
Fine control ensures load will not overrun
• 4 way roller guides and mounting plate
• Heavy duty 4.5m wander lead control
Two button supplied a standard, alternative lengths and
additional emergency stop button available on request
• Wire rope positively secured to drum
Using fixed plug and grub screw engagement
NOTES
These winches must not be used for the movement of personnel and 5 wraps of wire rope must be maintained on the drum. Data shown is approximate and intended as a guide only
Electric Winch, 4.5m heavy duty 2 button wander lead,
mounting plate, roller guides and 8mm x 23m galvanised
1960Nmm2 grade 6x36 core wire rope with safety latch
hook.
Total kit weight 40kg
12v or 24v DC Electric Recovery Winch
2250kg Line Pull
SPECIFICATIONS
Rated Line Pull (single line): Maximum recommended working capacity 2,200kgf to comply with EN14492-1.
Stall capacity 4300kg., Gear Ratio: 216:1 for either 12v or 24v., Motor: High torque series wound 24v (4.7hp).
Switching: Heavy duty, double acting solenoids can be mounted adjacent to winch [ NOT SUPPLIED ] or on to the winch tie bars with straps provided.
Load Limiting Device Optional, pre-wired and fitted to underside of solenoid pack. [ NOT SUPPLIED]
Can be calibrated to shut down winch when maximum load limit is reached.
Wanderlead Control: Commercial heavy duty type with 2 operating buttons and 4.5m cable.[ NOT SUPPLIED ]
Other lengths and additional emergency stop button versions available on request.
Roller Guides: Heavy duty, 4 way commercial type with grease ways. [ NOT SUPPLIED ]
Wire Rope: 8mm diameter galvanised 1960Nmm2 grade, 6 x 36 wire core construction [ NOT SUPPLIED ] with 44.7kN minimum breaking strain.
Free spooling: Lever on gear housing to disengage clutch.
Complete Kit Weight: 40kg
FEATURES INCLUDE
• 2250kg line pull
(22.07kN)
• Powerful series wound, high torque motor options
12v or 24v
• Optional electronic load limiting device
Pre wired to solenoid for safer winch operation
• 3 stage planetary gearing
Providing high mechanical efficiency
• Automatic braking action in drum
• Free spool clutch lever
Easy to operate lever for disengaging drum
• Power in / power out
Fine control ensures load will not overrun
• 4 way roller guides and mounting plate
• Heavy duty 4.5m wander lead control
Two button supplied a standard, alternative lengths and
additional emergency stop button available on request
• Wire rope positively secured to drum
Using fixed plug and grub screw engagement
NOTES
These winches must not be used for the movement of personnel and 5 wraps of wire rope must be maintained on the drum. Data shown is approximate and intended as a guide only
Electric Winch, 4.5m heavy duty 2 button wander lead,
mounting plate, roller guides and 8mm x 23m galvanised
1960Nmm2 grade 6x36 core wire rope with safety latch
hook.
Total kit weight 40kg
