C & C Lifting
Delta Battery Hoist (500kgs)
HIRE OR SALE "BATTERY CHAIN HOIST SAFE WORKING LOAD - 500KGS X 5 METER HOOK HEIGHT SPEED 2M/MIN 2 FALL MODEL DBH [ HANDY TO USE WHEN HAVE NO POWER]
DELTA Battery chain hoist DBH 18 volts , Working load: 500 kg. Lifting height: 5 meters
Lifting speed: 2,2 m / min, Voltage: 18V rechargeable li-ion battery, Lifting speed: Variable speed (when lowering), Control cable: Standard 3 meters Lifting chain: ø 4 x 12 mm, Energy consumption: - Net weight: 13,5 kg, Additional weight: 0,4 kg / m
Lifting chain: Load chain according to EN 818-7 Grade DAT, Enclosure protection: IP 55
Control protection: IP 65, Classification: M4 / 1Am (ISO / FEM) , Duty cycle: 30% / 180 Insulation class: F. Operating temperature: -10 ° C - + 40 ° C , Supplied in a handy Carrying case, Cargo Type: Goods, prohibited to humans,
Safety

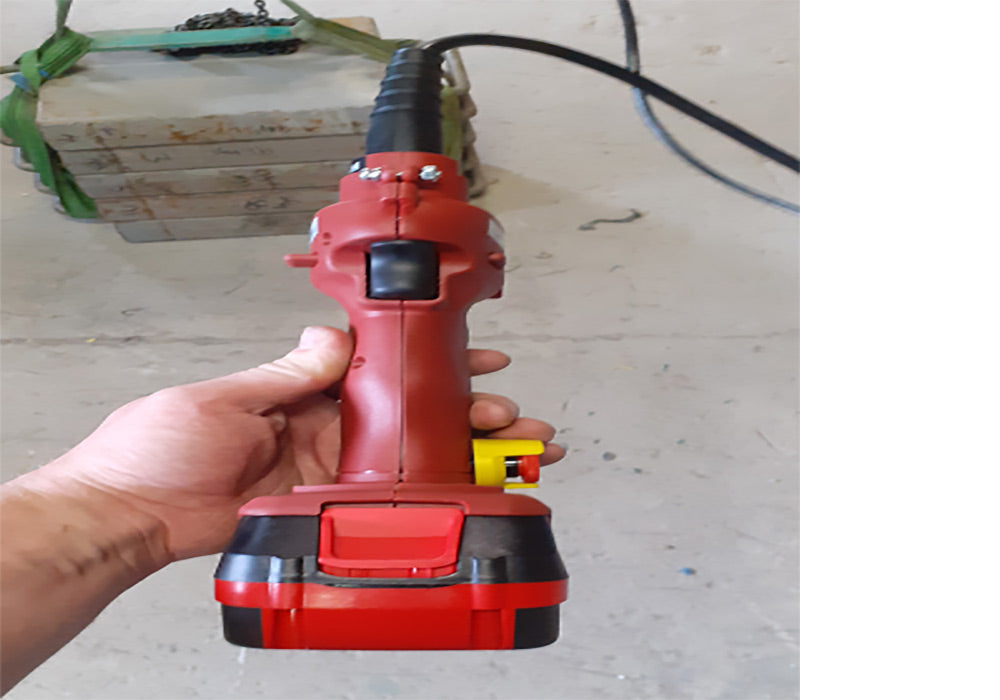

Switch: switch with emergency stop, Overload protection: Externally adjustable slip clutch and digital protection, Brake: Mechanical brake, Limit switch: Electromagnetic highest limit switch, lowest position secured by slip clutch, Thermal protection: No protection
DELTA Battery chain hoist DBH 18 volts , Working load: 500 kg. Lifting height: 5 meters
Lifting speed: 2,2 m / min, Voltage: 18V rechargeable li-ion battery, Lifting speed: Variable speed (when lowering), Control cable: Standard 3 meters Lifting chain: ø 4 x 12 mm, Energy consumption: - Net weight: 13,5 kg, Additional weight: 0,4 kg / m
Lifting chain: Load chain according to EN 818-7 Grade DAT, Enclosure protection: IP 55
Control protection: IP 65, Classification: M4 / 1Am (ISO / FEM) , Duty cycle: 30% / 180 Insulation class: F. Operating temperature: -10 ° C - + 40 ° C , Supplied in a handy Carrying case, Cargo Type: Goods, prohibited to humans,
Safety
Switch: switch with emergency stop, Overload protection: Externally adjustable slip clutch and digital protection, Brake: Mechanical brake, Limit switch: Electromagnetic highest limit switch, lowest position secured by slip clutch, Thermal protection: No protection
