C & C Lifting

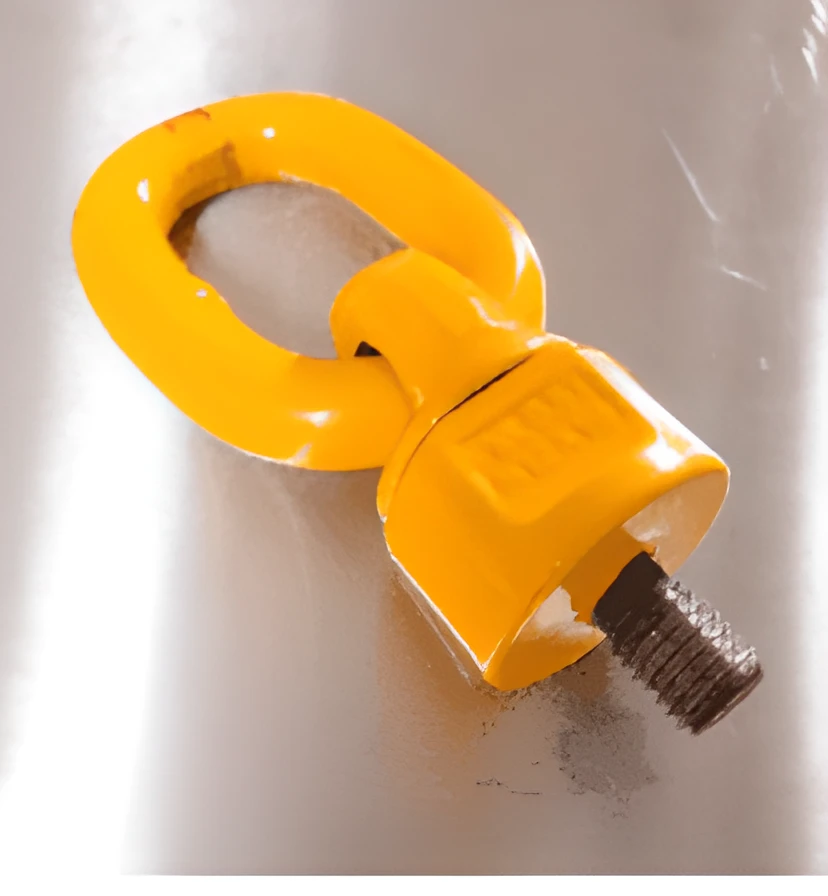

Swivel Eye Bolt With Ring

Swivel Eye Bolt with Link It rotates 360 ° and pivots 230 ° due to its unique ball bearing design. Parts with rated load are 100% magnaflux inspected. Traceability on all forgings and bolts. Bolts are metric thread. Also available with UNC thread. Test test at 2.5 times the WLL. Fatigue test at 20,000 cycles at 1.5 times the WLL. Certified by DGUV GS-OA-15-04. Easy to attach or detach due to the Super Point's forged hex body. Allows rotation with load in vertical direction (0 °). Do not turn continuously under full load at an angle of 90 °. Standard: Meets or exceeds all ASME B30.26 requirements. Tested according to EN 1677-4. Material: made of alloy steel, quenched and tempered. Marking: According to standard, CE-marked Certification: EN 1677-1 Safety factor: 4: 1 Grade: 8
