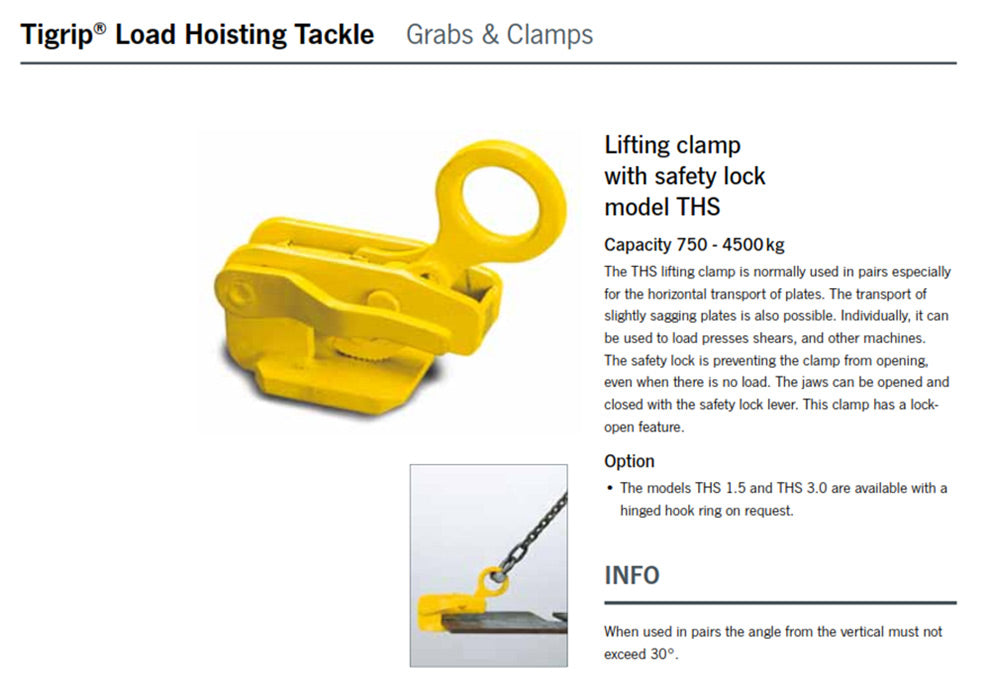

Horizontal Plate Clamp
0.75 TONNE LOCKABLE HORIZONTAL PLATE CLAMP TYPE THS 0-20MM
Designed to be used when horizontally loading the plate into machinery.
Can be used individually to load the plate, or in pairs to transport the plate.
Spring loaded safety lock.
Model Number: THS 750.
WLL (Per Pair): 0.75 Tonne (750Kgs).
Jaw Size: 0 - 20mm.
Jaw Depth: 67mm.
Eye Int. Diameter: 54mm.
Overall Height: 95mm.
Overall Width: 260mm.
Overall Depth: 80mm.
Net Weight (Per Pair): 7Kgs.
Conforms to EN13155.
Designed to be used when horizontally loading the plate into machinery.
Can be used individually to load the plate, or in pairs to transport the plate.
Spring loaded safety lock.
Model Number: THS 750.
WLL (Per Pair): 0.75 Tonne (750Kgs).
Jaw Size: 0 - 20mm.
Jaw Depth: 67mm.
Eye Int. Diameter: 54mm.
Overall Height: 95mm.
Overall Width: 260mm.
Overall Depth: 80mm.
Net Weight (Per Pair): 7Kgs.
Conforms to EN13155.
