C & C Lifting
Electric Hoist 125KGS/250KGS YALE 110V
HIRE OR SALE 125KGS /12M DROP, 250KGS/ 6M 2 FALL 12M SINGLE FALL , HOIST SPEED 2M/MIN/ 250 KGS2 FALL 4M/MIN/125KGS SINGLE FALL HOOK SUSPENSION [ LIGHT
TO HANDLE BY ONE HAND]

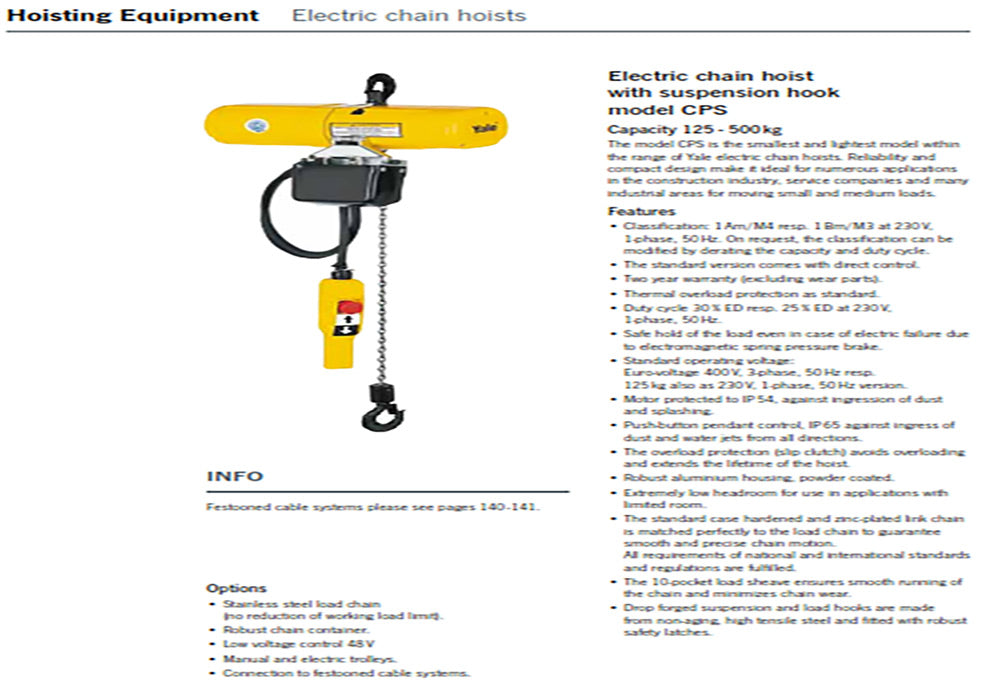

The CPS electric chain hoist lifts loads upto 250kg - yet weighs from only 12kg.
With an M4 high duty rating, the rugged new CPS electric chain hoist keeps lifting and lifting - up to 240 motor starts per hour. It's easy to install and maintain making it ideal for jib and light crane systems.
The new model CPS is the smallest and lightest within the family of Yale electric chain hoists. Reliability and compact design make it ideal for numerous applications in the construction industry, service companies and many industrial areas for moving small and medium loads.
The CPS electric chain hoist is built to the highest standards (just like all Yale products) and offers unequalled levels of build quality and reliability. Our two year warranty, repair and full after-sales service will allow you to recommend this excellent new product with confidence.
Features and benefits include:
• Easy installation and maintenance.
• IP54 as standard.
• 48v Control voltage.
• Overload protection device as standard.
• 10-pocket oblique-lay lift wheel for smooth chain operation, constant chain speed and reduced chain wear.
• Optional impact-resistant chain container.
• Gear train lifetime lubricated with non-oxidising grease.
• Alloy load chain for smooth operation and maximum life.
• Thermally protected hoist duty motor.
• Dual braking system - D.C. plus regenerative.
• Rugged cast aluminium alloy hoist frame.
• Small, compact design for commercial applications.
• Rigid latch-style upper hook prevents tangling of power cord.
• Hardened forged steel latch-style lower hook rotates 360°.
• Totally enclosed non-ventilated hoist frame protects motor from environment contamination.
• True vertical lift.
• Precision bearings used in the hoist.
• Designed and manufactured by Yale.
More Information
• Extremely low headroom.
• Electromagnetic spring pressure brake holds the load safely even in the event of power failure.
• Robust aluminium housing, powder coated.
• Classification 1 Am resp. 1 Bm.
• As required the model CPS (with appropriate changes to lifting capacity resp. duty cycle) can also be graded up to higher classifications.
• Pendant control protected to IP 65 against ingression of dust and water.
TO HANDLE BY ONE HAND]
The CPS electric chain hoist lifts loads upto 250kg - yet weighs from only 12kg.
With an M4 high duty rating, the rugged new CPS electric chain hoist keeps lifting and lifting - up to 240 motor starts per hour. It's easy to install and maintain making it ideal for jib and light crane systems.
The new model CPS is the smallest and lightest within the family of Yale electric chain hoists. Reliability and compact design make it ideal for numerous applications in the construction industry, service companies and many industrial areas for moving small and medium loads.
The CPS electric chain hoist is built to the highest standards (just like all Yale products) and offers unequalled levels of build quality and reliability. Our two year warranty, repair and full after-sales service will allow you to recommend this excellent new product with confidence.
Features and benefits include:
• Easy installation and maintenance.
• IP54 as standard.
• 48v Control voltage.
• Overload protection device as standard.
• 10-pocket oblique-lay lift wheel for smooth chain operation, constant chain speed and reduced chain wear.
• Optional impact-resistant chain container.
• Gear train lifetime lubricated with non-oxidising grease.
• Alloy load chain for smooth operation and maximum life.
• Thermally protected hoist duty motor.
• Dual braking system - D.C. plus regenerative.
• Rugged cast aluminium alloy hoist frame.
• Small, compact design for commercial applications.
• Rigid latch-style upper hook prevents tangling of power cord.
• Hardened forged steel latch-style lower hook rotates 360°.
• Totally enclosed non-ventilated hoist frame protects motor from environment contamination.
• True vertical lift.
• Precision bearings used in the hoist.
• Designed and manufactured by Yale.
More Information
• Extremely low headroom.
• Electromagnetic spring pressure brake holds the load safely even in the event of power failure.
• Robust aluminium housing, powder coated.
• Classification 1 Am resp. 1 Bm.
• As required the model CPS (with appropriate changes to lifting capacity resp. duty cycle) can also be graded up to higher classifications.
• Pendant control protected to IP 65 against ingression of dust and water.
