C & C Lifting

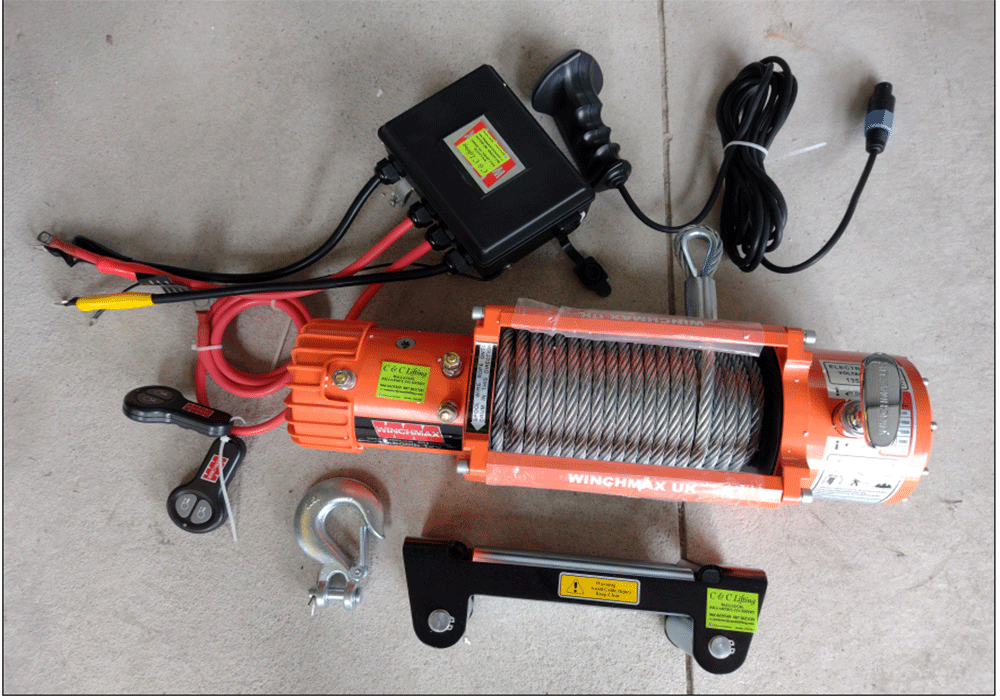

Electric Winch 12 Volt Wireless Remote Control

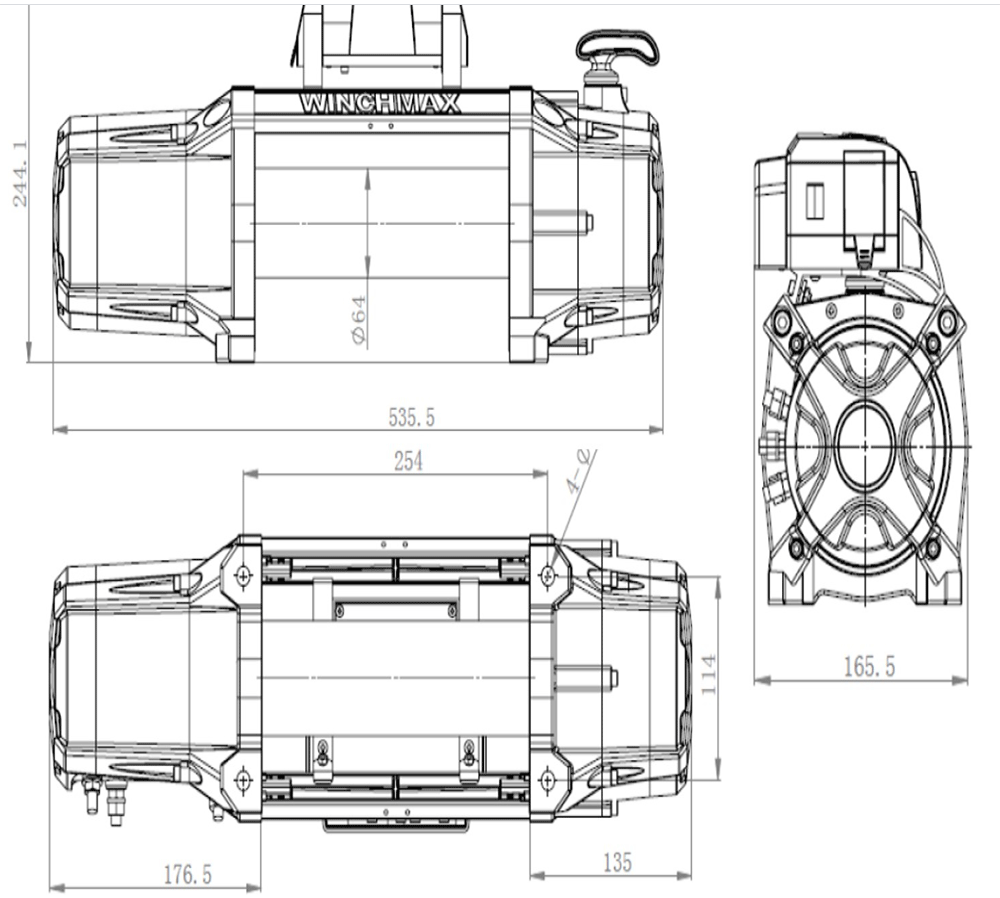

12V ELECTRIC WINCH WIRELESS REMOTE Single Line Rated Pull 13,500lb (6,123kg) Motor 12v 6.8hp series wound Control Big grip remote switch, 4.5m lead Gear Train 3 stage planetary Gear Reduction Ratio 265:1 Clutch Sliding ring gear Braking Action Automatic in the drum Drum Size Diameter 64mm (2.5") length 224mm (8.82”) Drum Finish Galvanized Cable 26m of 9.5mm galvanized steel wire rope Hook Clevis hook ⅜”, black. Fairlead 4-Way stainless steel roller fairlead Battery Recommended 650CCA minimum for winching Battery Leads 2 gauge, 1.83m (72”) 25mmsq - 5.6mm diameter Winch Finish Matt black (low light paint) Weight (GW) 40kg (88lb) Overall Dimensions (LxWxH) 536 x 160 x 218mm (21.3" x 6.3" x 8.6") Mounting Bolt Pattern 10.00”±0.015" x 4.50”±0.010" (254 x 114.3mm) Motor Current 65-500A No Load Line Speed 7.5m/min (24.6 ft/min) Waterproof IP67 Rating
