Manhole lifting Pin
The safest way for lifting, positioning and handling of manhole pipes and chambers.
Our manhole lifting pins have been proof loaded and are approved for use with sling angles between o and 60 degrees.
The unique and patented design enables ground workers to easily and efficiently complete the installation with the need for additional tools.
Warning: Must not be used singularly. [ used 3 together]
Designed specifically to speed up lifting operations where manhole pipes are involved.
Safe and simple to use.
No threads needing protection or nuts to safe guard.
4 standard sizes are available.

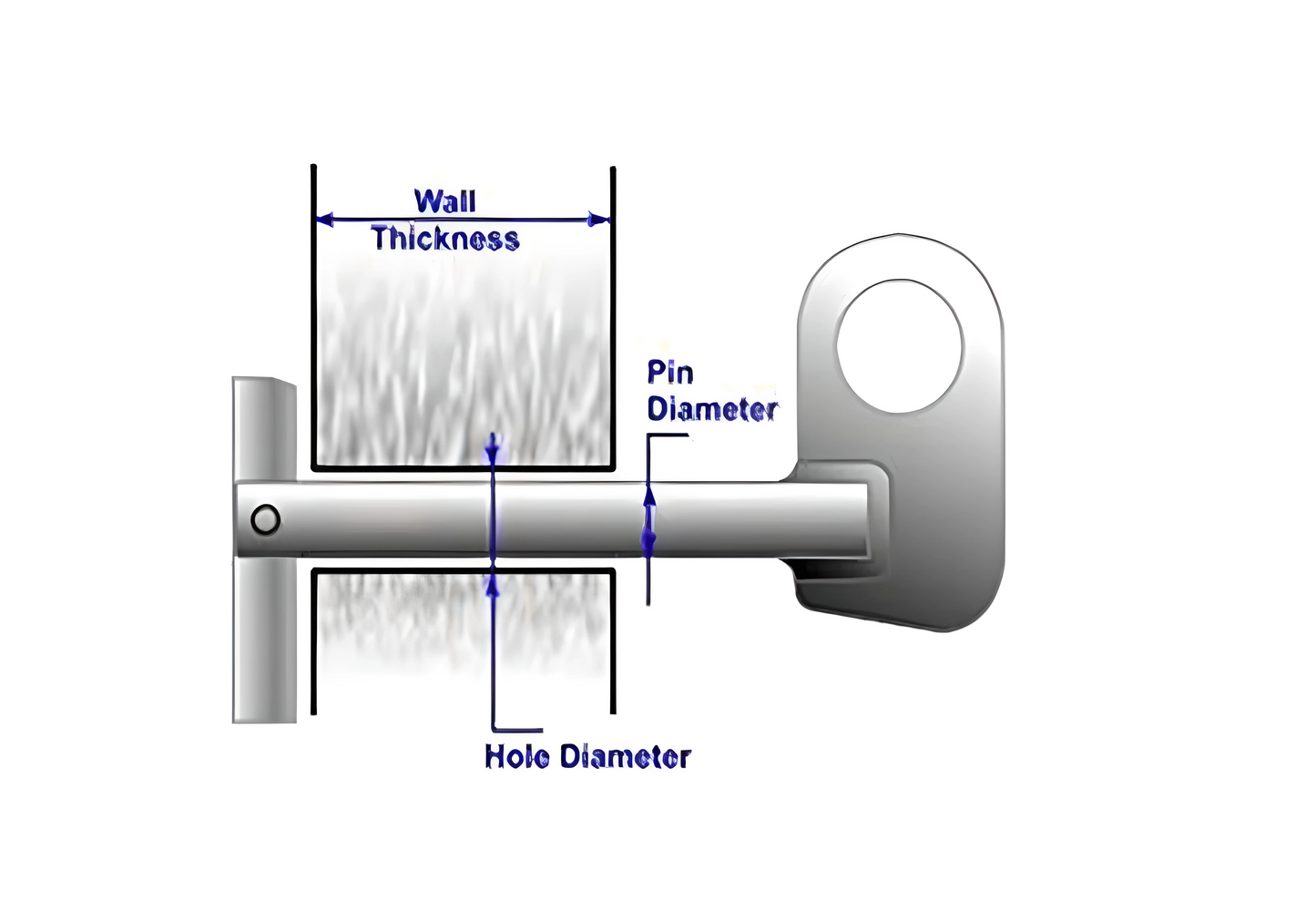

Sizes Available
25mm dia - 750kg SWL (per pin) - Max Pipe Wall Thickness 120mm
32mm dia - 1000kg SWL (per pin) - Max Pipe Wall Thickness 150mm
35mm dia - 1500kg SWL (per pin) - Max Pipe Wall Thickness 170mm
38mm dia - 2000kg SWL (per pin) - Max Pipe Wall Thickness 200mm
Our manhole lifting pins have been proof loaded and are approved for use with sling angles between o and 60 degrees.
The unique and patented design enables ground workers to easily and efficiently complete the installation with the need for additional tools.
Warning: Must not be used singularly. [ used 3 together]
Designed specifically to speed up lifting operations where manhole pipes are involved.
Safe and simple to use.
No threads needing protection or nuts to safe guard.
4 standard sizes are available.
Sizes Available
25mm dia - 750kg SWL (per pin) - Max Pipe Wall Thickness 120mm
32mm dia - 1000kg SWL (per pin) - Max Pipe Wall Thickness 150mm
35mm dia - 1500kg SWL (per pin) - Max Pipe Wall Thickness 170mm
38mm dia - 2000kg SWL (per pin) - Max Pipe Wall Thickness 200mm
