COMEUP CWL-200KG 110V WINCH C/W WIRE ROPE PENDENT
COMEUP CWL-200KG 110V WINCH C/W WIRE ROPE PENDENT

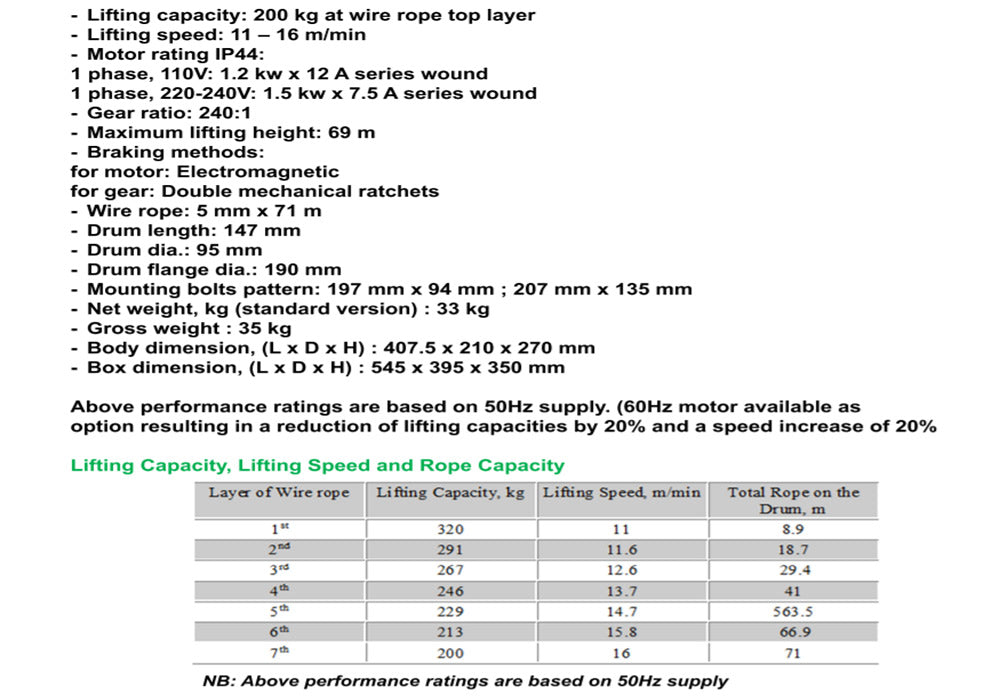

- Lifting capacity: 200 kg at wire rope top layer
- Lifting speed: 11 – 16 m/min
- Motor rating IP44:
1 phase, 110V: 1.2 kw x 12 A series wound
1 phase, 220-240V: 1.5 kw x 7.5 A series wound
- Gear ratio: 240:1
- Maximum lifting height: 69 m
- Braking methods:
for motor: Electromagnetic
for gear: Double mechanical ratchets
- Wire rope: 5 mm x 71 m
- Drum length: 147 mm
- Drum dia.: 95 mm
- Drum flange dia.: 190 mm
- Mounting bolts pattern: 197 mm x 94 mm ; 207 mm x 135 mm
- Net weight, kg (standard version) : 33 kg
- Gross weight : 35 kg
- Body dimension, (L x D x H) : 407.5 x 210 x 270 mm
- Box dimension, (L x D x H) : 545 x 395 x 350 mmCOMEUP CWL200L

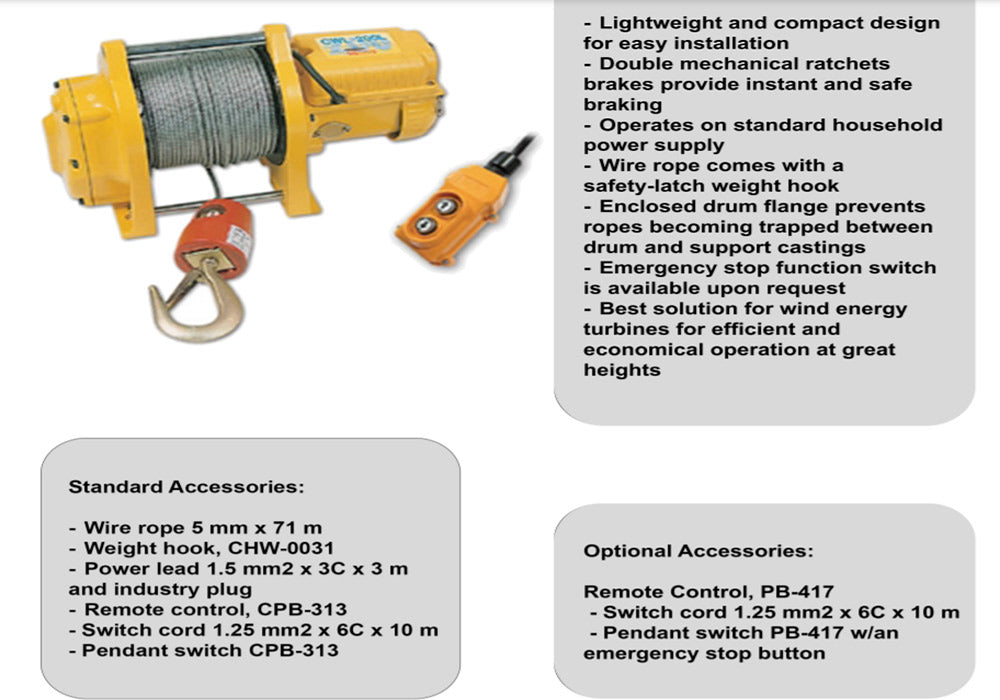

200kg Lifting capacity
Lightweight and compact design for easy installation
Operates on standard household power supply
Double mechanical ratchet brakes for instant and safe braking
Comes with 71m x 5mm wire rope with safety-latch weight hook
Ideal for wind energy turbines
Max lifting speed 16 m/min
Enclosed drum flange prevents ropes becoming trapped between drum and support castings
- Lifting capacity: 200 kg at wire rope top layer
- Lifting speed: 11 – 16 m/min
- Motor rating IP44:
1 phase, 110V: 1.2 kw x 12 A series wound
1 phase, 220-240V: 1.5 kw x 7.5 A series wound
- Gear ratio: 240:1
- Maximum lifting height: 69 m
- Braking methods:
for motor: Electromagnetic
for gear: Double mechanical ratchets
- Wire rope: 5 mm x 71 m
- Drum length: 147 mm
- Drum dia.: 95 mm
- Drum flange dia.: 190 mm
- Mounting bolts pattern: 197 mm x 94 mm ; 207 mm x 135 mm
- Net weight, kg (standard version) : 33 kg
- Gross weight : 35 kg
- Body dimension, (L x D x H) : 407.5 x 210 x 270 mm
- Box dimension, (L x D x H) : 545 x 395 x 350 mmCOMEUP CWL200L
200kg Lifting capacity
Lightweight and compact design for easy installation
Operates on standard household power supply
Double mechanical ratchet brakes for instant and safe braking
Comes with 71m x 5mm wire rope with safety-latch weight hook
Ideal for wind energy turbines
Max lifting speed 16 m/min
Enclosed drum flange prevents ropes becoming trapped between drum and support castings
